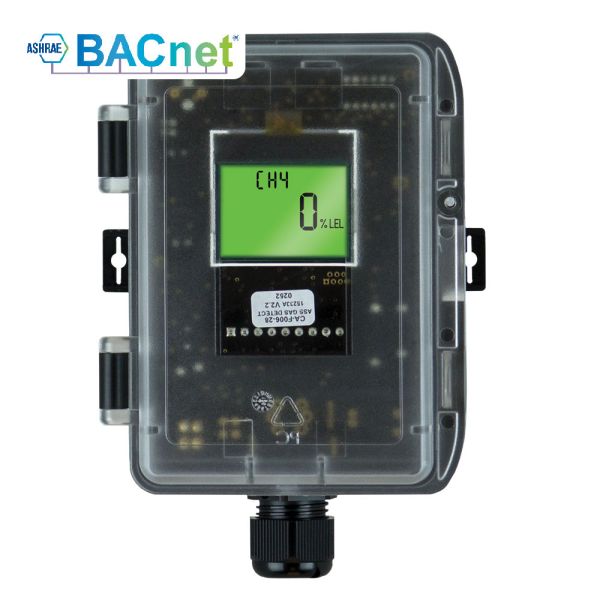

Duct Gas Detector (DFGD)
The Flamefast Duct Mounted Gas Detector provides a robust, cost effective solution for gas monitoring in ductwork. The BACnet MS/TP interface can be used with any of the Flamefast range of safety systems, or can be connected directly to the BMS, and provides an unrivalled level of information.
Top Key Features
- 24V AC/DC Power Supply
- Pre-calibrated
- Traffic light LCD readout
- BACnet MS/TP over RS485
- UK Manufactured
Overview
The Flamefast Duct Mounted Gas Detector provides a robust, cost effective solution for gas monitoring in ductwork.
The BACnet MS/TP interface can be used with any of the Flamefast range of safety systems, or can be connected directly to the BMS, and provides an unrivalled level of information.
Although the sensors can be connected to third party BACnet networks, for safety systems it is strongly recommended that the sensors are used in conjunction with a Flamefast BoilerGuard or GasMonitor.
The broadband Pellistor and Infra-red Hydro-carbon sensors can be calibrated to suit most combustible gases, with the option to factory calibrate and rename the sensor for the specific gas. Flamefast can also offer a full range of toxic gas sensors, including H2S, HCN and many more (please contact for details).
Key Features
- 24V AC/DC Power Supply
- Pre-calibrated
- Traffic light LCD readout
- BACnet MS/TP over RS485
- Simple configuration and calibration
- Calibration and ‘End of Life’ reminders
- Oxygen Sensors monitor Enrichment and Depletion as standard
- 200mm Duct Probe
- UK MANUFACTURED
Dimensions
| Height: | 152 mm |
|---|---|
| Width: | 110 mm |
| Depth: | 50 mm |
| Probe Length: | 200 mm |
Technical Specifications
| Power Supply: | 24V AC/DC ± 10% | ||||
|---|---|---|---|---|---|
| Power Consumption: | 60mA | ||||
| BACnet: | MS/TP over RS485 Baud: 9k6, 19k2, 38k4 or 76k8 127 Address (1/10th Load) Full specification available on request | ||||
| Operation Conditions: |
| ||||
| Sampling Method: | Diffusion | ||||
| Warm-up Time: | 60 Seconds (24 Hours for full stability) | ||||
| Response Time (T90): | < 60 Seconds (Adjustable) | ||||
| Housing Material: | PC/ABS | ||||
| IP Rating: | IP66 (external to duct) | ||||
| Colour: | Black/Clear | ||||
| Approval: | CE, UKCA |
Installer Selectable Options
| Audible Alarm | Enable / Disable |
| Auto Zero Calibration | Enable / Disable |
Quality and Reliability as Standard
Part Numbers & Options / Accessories
| Part No | Gas | Range | Typical Life (years) |
| DFGD-NG | Natural Gas (Methane) | 100% LEL | 5 |
| DFGD-LPG | Propane | 100% LEL | 5 |
| DFGD-H2 | Hydrogen (LEL) | 100% LEL | 5 |
| DFGD-HC | Hydro-carbon (Pellistor) | 100% LEL | 5 |
| DFGD-IRHC | Hydro-carbon (Infra-red) | 100% LEL | 5 |
| DFGD-SF6 | Sulfur Hexafluoride | 1,000ppm | 5 |
| DFGD-CO2 | Carbon Dioxide | 5% | 5 |
| DFGD-CO | Carbon Monoxide (Plant/Carpark) | 200ppm | 5 |
| DFGD-NO2 | Nitrogen Dioxide | 5ppm | 3 |
| DFGD-NH3 | Ammonia | 100ppm | 3 |
| DFGD-CL2 | Chlorine | 5ppm | 3 |
| DFGD-H2e | Hydrogen (Electrochemical) | 2,000ppm | 3 |
| DFGD-SO2 | Sulphur Dioxide | 5ppm | 3 |
| DFGD-O2 | Oxygen | 25% | 5 |
OTHER GASES AVAILABLE ON REQUEST
-
