Vision CO2 Monitor
High-quality, easy to use Carbon Dioxide, Temperature & Relative Humidity monitor.
Top Key Features
- USB Powered – PC/mains adapter
- Non-dispersive Infra-red (NDIR) CO2 sensor
- Bold multicoloured indication
- Desktop or wall mountable
- UK Manufactured
Overview
Vision is a high-quality UK Manufactured CO2 Monitor that advises when further ventilation is required. This ‘plug and play’ solution does not require hard wiring yet has the added benefit of continuous monitoring (updated every 5 seconds) and provides a bold visual indication that is not achievable with battery operated units.
An anti-tamper wall bracket (with cable securing channel) is supplied as standard, so Vision can be used as both a portable or fixed solution. When you connect Vision to a Laptop or PC, the free PC app allows your Vision settings to be fully customised, and readings for the previous 30 days to be viewed.
Key Features
- USB Powered – PC/mains adapter
- Non-dispersive Infra-red (NDIR) CO2 sensor
- Bold multicoloured indication
- Desktop or wall mountable
- Anti-tamper wall bracket supplied as standard
- Typical 10+ year life expectancy
- Configurable through free Windows app
- UK MANUFACTURED
Please note this is an external link

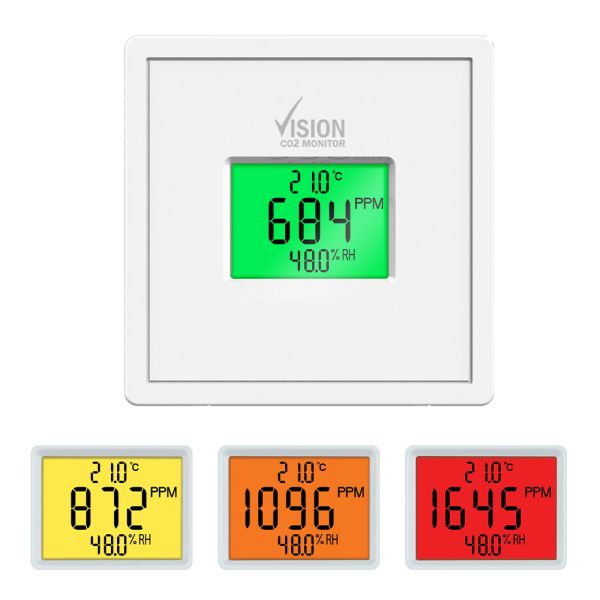

MULTICOLOURED SETTINGS
Up to 600ppm (*custom)
601 to 800ppm (*default)
801 - 1000ppm (*default)
1001 - 1500ppm (*default)
1501 - 2000ppm (*default)
Over 2000ppm (*custom)
*Green, yellow, amber and red are enabled as default. To enable blue and purple, or to amend any of the activation levels, please download the free Vision Windows app from our website
Dimensions
| Height: | 84 mm 84 mm with bracket |
|---|---|
| Width: | 84 mm 88 mm with bracket |
| Depth: | 34 mm 40 mm with bracket |
What's included:
- Vision CO2 Monitor
- Anti-tamper Wall Bracket
- USB Mains Adapter (White)
- 2m USB Cable (White)
Free Windows app:
- Multicoloured setting configuration
- 30-day historical data can be viewed
- Temp & RH Readings can be disabled
- Manual Calibration
Technical Specifications
| Power Supply: | 5VDC - USB Type C | ||||
|---|---|---|---|---|---|
| Power Consumption: | <500mA | ||||
| CO2 Range: | 0 - 10,000ppm | ||||
| CO2 Accuracy: | ±40 ppm +3% @ NTP | ||||
| CO2 Display Resolution: | 1ppm | ||||
| CO2 Sensing Method: | Non Dispersive Infra-red (NDIR) | ||||
| CO2 Sensor Life: | 10 Years | ||||
| Temp Range: | 0 - 40°C | ||||
| Temp Accuracy: | ±0.3°C @ 25°C | ||||
| Temp Display Resolution: | 0.1°C | ||||
| RH Range: | 0 - 95% (NC) | ||||
| RH Accuracy: | ±2% @ 20 - 80% | ||||
| RH Display Resolution: | 0.1% | ||||
| Operation Conditions: |
| ||||
| Sampling Method: | Diffusion | ||||
| Housing Material: | Flame Retardant ABS | ||||
| IP Rating: | IP40 | ||||
| Colour: | White (RAL9010) | ||||
| Approval: | CE, UKCA |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
CO2U-V2 | Vision CO2 Monitor |
Vision CO2 Monitor
