Remote Display
Categories: Products , Accessories , Plant Room Gas Safety , Specialist Gas Detection , Accessories , Plant Room Gas Safety , Specialist Gas Detection
The remote display allows the main controller to be mounted inside the monitored area without the need to enter to view the system status, or can be used to provide an indication at additional exits. This can be used with the GasMonitor or BoilerGuard only.
Top Key Features
- Powered directly from panel
- Up to 4 displays can be connected
- Wired on the same network as the sensors
- Bold traffic light indication
Overview
The remote display allows the main controller to be mounted inside the monitored area without the need to enter to view the system status, or can be used to provide an indication at additional exits. This can be used with the GasMonitor or BoilerGuard only.

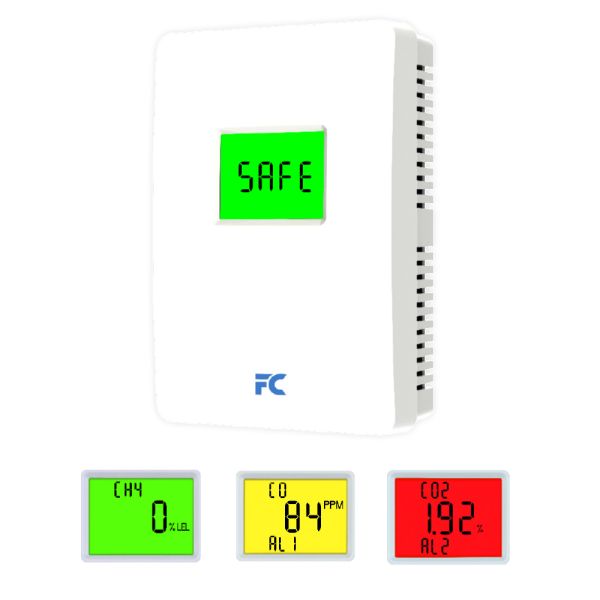

A traffic light LCD will advise if any of the connected sensors enter alarm and the display can either scroll through the concentration of all sensor types connected or simply display the status.
Key Features
- Powered directly from panel
- Up to 4 displays can be connected
- Wired on the same network as the sensors
- Bold traffic light indication
Dimensions
| Height: | 125 mm (Standard), 152 mm (IP Rated) |
|---|---|
| Width: | 86 mm (Standard), 110 mm (IP Rated) |
| Depth: | 36 mm (Standard), 50 mm (IP Rated) |
Technical Specifications
| Power Supply: | 24V AC/DC ± 10% |
|---|---|
| Power Consumption: | 40mA Max |
| VFC Output: | SPDT - 1A @ 24V Max |
| IP Rating: | IP40 / IP66 |
| Approval: | CE, UKCA |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| GM-RD | GasMonitor Remote Display |
| GM-RD-IP66 | GasMonitor Remote Display (IP66) |
Data Sheets
General specifications in .pdf format
