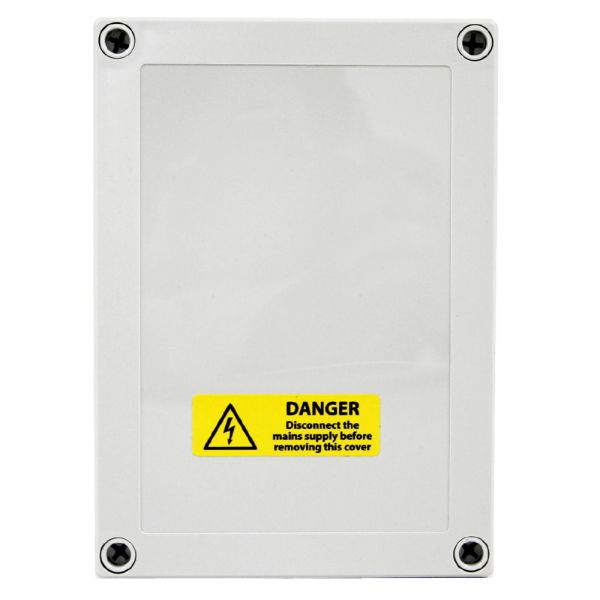

External Power Supply
The External Power Supply is for use when the number of sensors and remote displays exceeds the current demand available directly from the Flamefast BoilerGuard or GasMonitor panel.
Top Key Features
- 24V DC Output (2A)
- Dedicated terminals to allow easy connection to both Gas Sensors and the Main Controller
Overview
The External Power Supply is for use when the number of sensors and remote displays exceeds the current demand available directly from the Flamefast BoilerGuard or GasMonitor panel.
Key Features
- 24V DC Output (2A)
- Dedicated terminals to allow easy connection to both Gas Sensors and the Main Controller
Dimensions
Height: | 180 mm |
---|---|
Width: | 130 mm |
Depth: | 60 mm |
Technical Specifications
Power Supply: | 100 - 250VAC 50/60Hz |
---|---|
Power Output: | 24V DC (2A) |
Housing Material: | PC |
IP Rating: | IP66 |
Colour: | Light Grey (RAL7035) |
Approval: | CE, UKCA |
Part Numbers & Options / Accessories
PART NO | DESCRIPTION |
PS-24D | 24V DC Power Supply (2A) |
Data Sheets
General specifications in .pdf format
