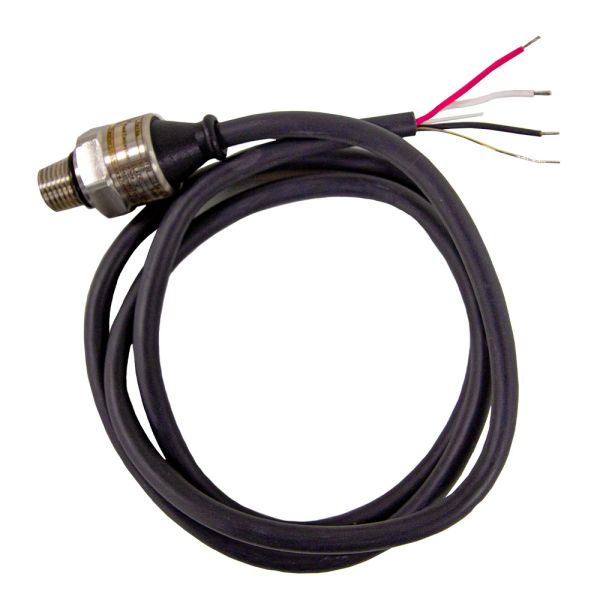

Pressure Transmitter

Categories: Products , Pressure , BMS Sensor

The Flamefast Pressure Transmitter is an extremely compact unit designed for use with the GasGuard, ServiceGuard and BoilerGuard for low pressure Natural Gas or LPG applications.

When screwed directly into the downstream port of a gas solenoid valve and wired back to the panel with a 3 core cable, the transmitter provides an accurate pressure reading used to monitor for leaks, low pressure as well as overpressure.

Overview

The Flamefast Pressure Transmitter is an extremely compact unit designed for use with the GasGuard, ServiceGuard and BoilerGuard for low pressure Natural Gas or LPG applications.

When screwed directly into the downstream port of a gas solenoid valve and wired back to the panel with a 3 core cable, the transmitter provides an accurate pressure reading used to monitor for leaks, low pressure as well as overpressure.

Technical Specifications

Power Supply:24V DC ±10%
Analogue Outputs:1-5V
Cable Length:1m
Connection:¼" Male BSP
Approval:CE, UKCA

Part Numbers & Options / Accessories

PART NODESCRIPTION
PT00Pressure Transmitter - 100mB
PT10Pressure Transmitter - 10Bar

HIGH PRESSURE GAS PROVING AVAILABLE ON REQUEST

Data Sheets

General specifications in .pdf format
