Air Differential Pressure Switch
These Air DP Switches are ideal for verifying the correct operation of ventilation systems by monitoring the pressure differential created by air movement and can be used to provide a BS6173:2009 and IGEM/UP/19 compliant interlock when interfaced with any GasGuard system.

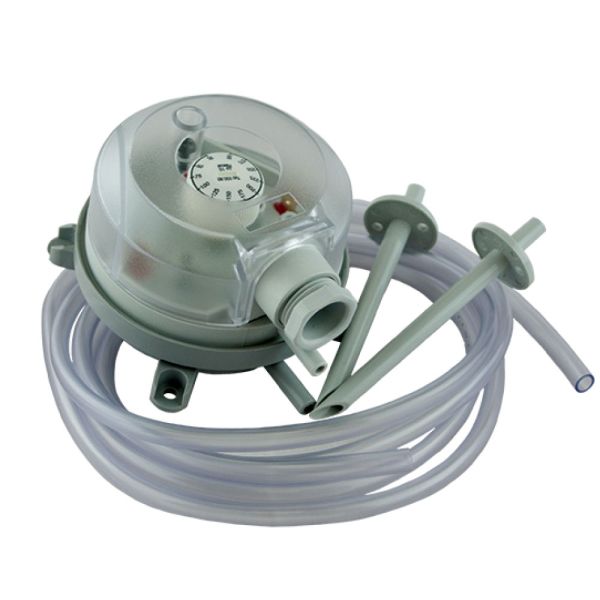

The switches have a range of 20 - 300Pa with an easily adjustable set point and are supplied with a duct kit (2m of hose, 2x pitot tubes & fixing screws).
Overview
These Air DP Switches are ideal for verifying the correct operation of ventilation systems by monitoring the pressure differential created by air movement and can be used to provide a BS6173:2009 and IGEM/UP/19 compliant interlock when interfaced with any GasGuard system.
The switches have a range of 20 - 300Pa with an easily adjustable set point and are supplied with a duct kit (2m of hose, 2x pitot tubes & fixing screws).
Dimensions
| Height: | 88 mm |
|---|---|
| Width: | 92 mm |
| Depth: | 52 mm |
Technical Specifications
| VFC Output: | SPDT - 1.5A @ 250V Max |
|---|---|
| Range: | 20 - 300Pa |
| IP Rating: | IP54 |
| Approval: | CE, UKCA |
Quality and Reliability as Standard
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| ADPS | Air Differential Pressure Switch comes with Duct Kit |
Data Sheets
General specifications in .pdf format
-
