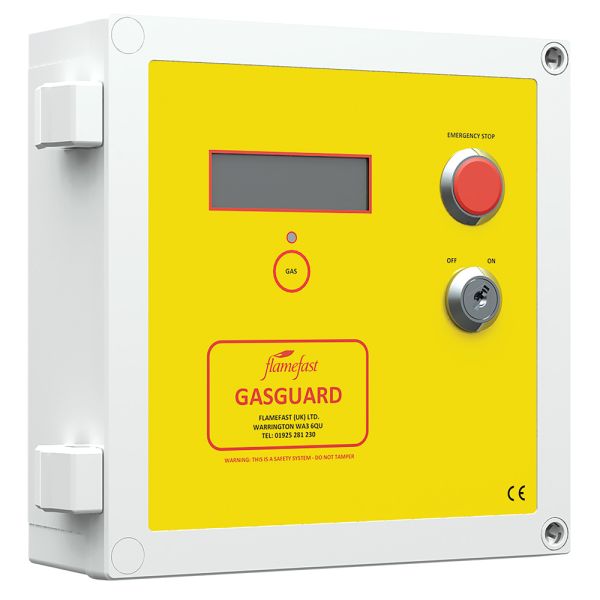

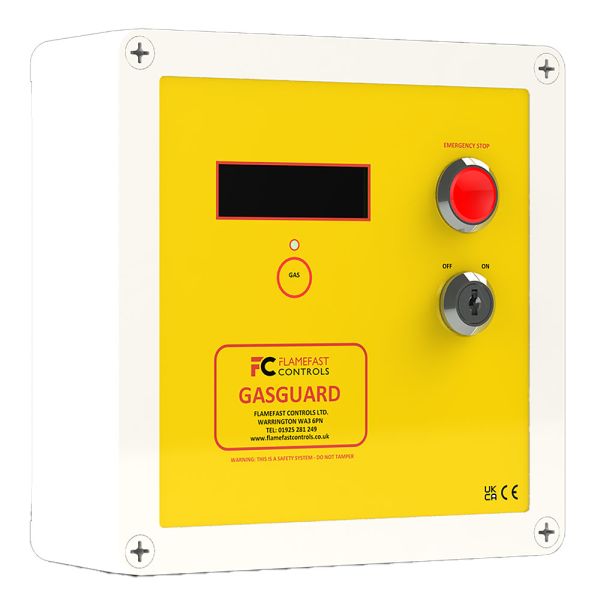

GasGuard
The GasGuard gas proving system is designed to meet the requirements of IGEM/UP/11 for educational establishments and is a BS6173 and IGEM/UP/19 compliant ventilation interlock.
Top Key Features
- Clear LCD indication & instructions
- No commissioning required
- Annual Service Reminder
- 24VDC auxiliary power output
Overview
The GasGuard gas proving system is designed to meet the requirements of IGEM/UP/11 for educational establishments and is a BS6173 and IGEM/UP/19 compliant ventilation interlock.
The GasGuard is ideal for when appliances are not fitted with flame failure devices, or can be used to provide additional peace of mind when they are.
With a backlit LCD, the GasGuard will provide a clear indication of any issues with external devices such as ventilation systems, and will provide details of gas pressures and Gas Sensor levels.
Key Features
- Clear LCD indication & instructions
- No commissioning required
- Annual Service Reminder
- 24VDC auxiliary power output
- Interfaces for:
- Gas Sensors
- CO2 Sensor
- Ventilation Systems
- Remote Emergency Stop Buttons
- Fire Alarm System - System status button to aid with fault finding
- High accuracy Pressure Transmitter
Dimensions
| Height: | 180 mm |
|---|---|
| Width: | 180 mm 190 mm - including hinge |
| Depth: | 60 mm 65 mm - including stop & key switch |
Basic Operation
Turning the key switch to ON will start the proving cycle by energising the Gas Valve to pressurise the system, the valve will then close and the pipework is monitored for 30 seconds for pressure drops.
Upon receiving a fault signal from any external devices, the GasGuard will ensure that the gas is isolated to prevent any potential issues and the LCD will advise exactly what the issue is and how to rectify it.
Turning the key switch to the OFF position or pressing the panel stop button will isolate the gas supply.
The internal Open and Display buttons are also available to aid with commissioning and fault finding, providing details of ALL interfaces at the press of a button.
Technical Specifications
| Power Supply: | 100 - 250VAC 50/60Hz | ||||
|---|---|---|---|---|---|
| Power Consumption: | 40W (Max) | ||||
| Power Output: | Gas Solenoid Switched Mains | ||||
| Operation Conditions: |
| ||||
| Body Material: | ABS | ||||
| IP Rating: | IP65 (Providing rear entry sealed) | ||||
| Colour: | Grey (RAL7035) | ||||
| Approval: | CE, UKCA |
External Device Interfaces
| Valve Status | SPST - 5A @ 250V Max |
| Pressure Transmitter | Monitors Proving Transmitter |
| 24V Out | Auxiliary Supply (300mA Max) for TR, SS, FGD/FGS & FCMON |
| Gas Sensor | BACnet Interface for Gas Sensors |
| CO2 Sensor | 24V Signal to monitor external VFC |
| Intake Fan | 24V Signal to monitor external VFC |
| Extract Fan | 24V Signal to monitor external VFC |
| Remote Stop | 24V Signal to monitor external VFC |
| Fire Alarm | 24V Signal to monitor external VFC |
Installer Selectable Options
| Gas Pipework Fill Time | 5 / 10 Seconds |
| Gas Availability Timer | Off / 4 / 8 / 16 Hours |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| GG-PT00 | GasGuard System c/w Pressure Transmitter |
| TR-CO2TL | Transmitter - CO2 & Temp c/w LCD |
| ADPS | Air Diffrential Pressure Switch (20-300Pa) c/s Duct Kit |
| RSTOP-C | Remote Emergency Stop - Call Point |
| SVxx | XXmm Gas Solenoid Valve (230V) - Specify Size |
-
