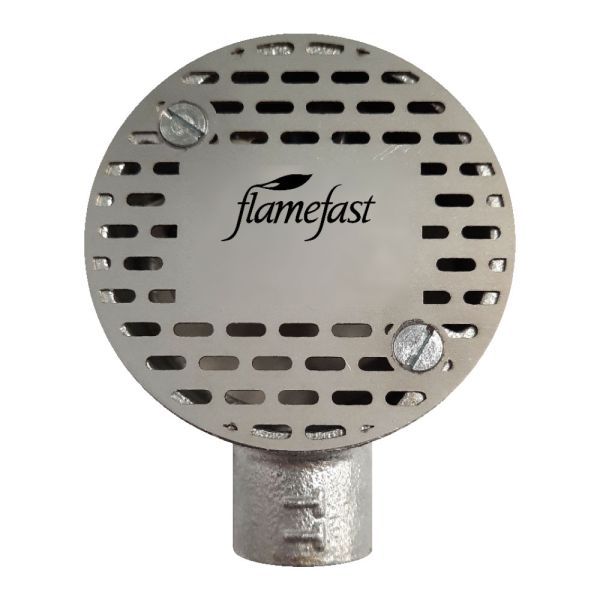

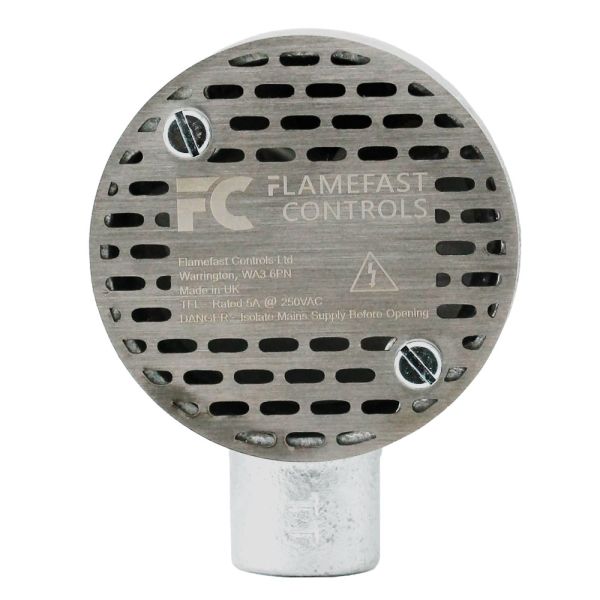

Thermal Fusible Link
The New Flamefast Auto-reset Thermal Fusible Link is to be installed directly above boiler plant and are designed to detect excessive heat, and when interfaced with a Flamefast BoilerGuard (or third party safety circuit) can be used to isolate the fuel supply to the plant.
With an activation point of 70°C, they will automatically reset once they drop below 55°C. This allows for functionality testing that is not available with traditional links.
Overview
The New Flamefast Auto-reset Thermal Fusible Link is to be installed directly above boiler plant and are designed to detect excessive heat, and when interfaced with a Flamefast BoilerGuard (or third party safety circuit) can be used to isolate the fuel supply to the plant.
With an activation point of 70°C, they will automatically reset once they drop below 55°C. This allows for functionality testing that is not available with traditional links.
Technical Specifications
| VFC Output: | SPST - 5A @ 250V Max |
|---|---|
| Activation Temp: | 70°C (158˚F) ± 3°C |
| Reset Temp: | 55°C (131oF) ± 4°C |
| Mounting Height: | 0.3 to 1.0m above plant |
| Connection: | M20 Female Thread |
| Approval: | CE, UKCA |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| TFL | Auto-reset Thermal Fusible Link (70°C) |
Data Sheets
General specifications in .pdf format
-
