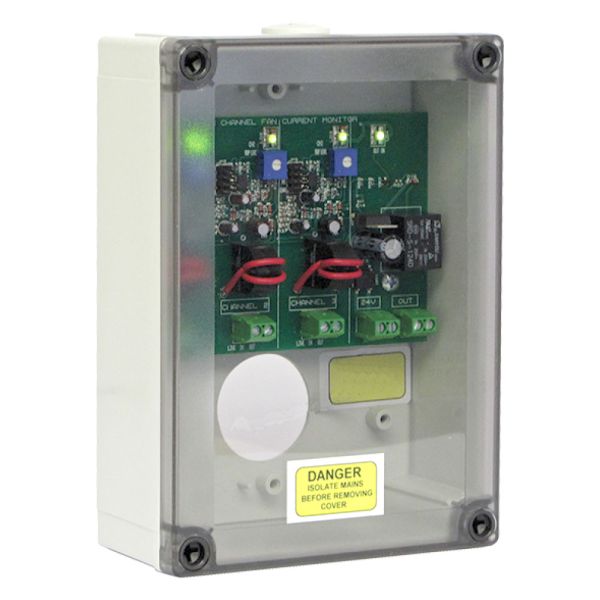

Fan Current Monitor
This three channel current monitor can be used to provide a BS6173:2009 and IGEM/UP/19 compliant interlock when interfaced with any GasGuard system.
Top Key Features
- Can be powered from any of the Flamefast LCD range of panels
- Traffic light status indication for each channel
- Can be used with 3 phase fans
Overview
This three channel current monitor can be used to provide a BS6173:2009 and IGEM/UP/19 compliant interlock when interfaced with any GasGuard system. By measuring absorbed power the fan current monitor can determine whether the fan is operating correctly.
The fan current monitor can be used to monitor up to three single phase fans or one three phase fan, and the common VFC output makes interfacing with GasGuard
systems simple.
ONLY COMPATIBLE WITH FLAMEFAST LCD RANGE.
Key Features
- Can be powered from any of the Flamefast LCD range of panels
- Traffic light status indication for each channel
- Can be used with 3 phase fans
Dimensions
| Height: | 180 mm |
|---|---|
| Width: | 130 mm |
| Depth: | 77 mm |
Technical Specifications
| Power Supply: | 24V DC ± 10% |
|---|---|
| Power Consumption: | 40mA |
| VFC Output: | SPST - 1A @ 24V Max |
| Range: | 0.25A to 15A |
| Body Material: | PC |
| IP Rating: | IP65 (Providing rear entry sealed) |
| Approval: | CE, UKCA |
Quality and Reliability as Standard
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| FCMON | Fan Current Monitor (3 Channel) |
Data Sheets
General specifications in .pdf format
