Traffic light Alarm Indicator
Categories: Products , Accessories , Plant Room Gas Safety , Specialist Gas Detection , Accessories , Plant Room Gas Safety , Specialist Gas Detection

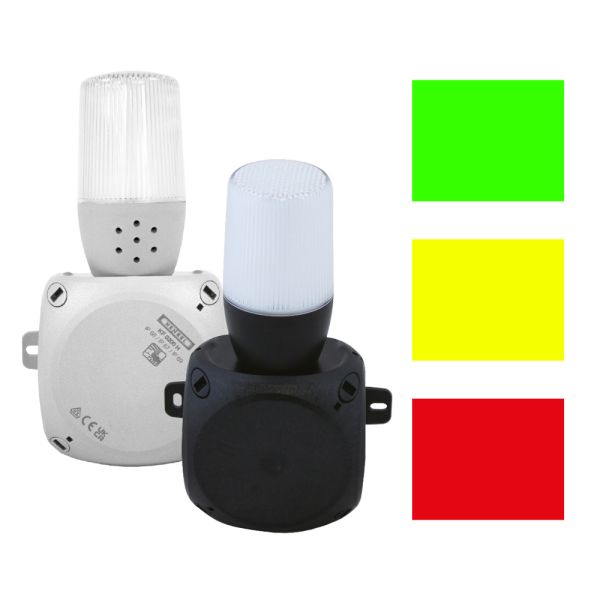

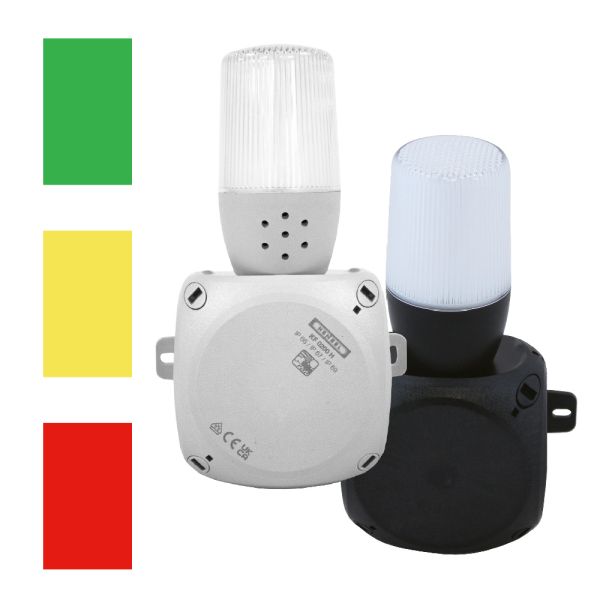

This compact audio/visual alarm indicator is ideal for use with the Flamefast BoilerGuard or GasMonitor panels to provide traffic light alarm indication based on gas sensor alarm conditions with Green, Amber and Red warnings from a single unit, as well as having an audible alarm.
Top Key Features
- 24V AC/DC Power Supply
- Audible output can be disabled
- Can also be configured to provide Blue or White (3 colour max)
Overview
This compact audio/visual alarm indicator is ideal for use with the Flamefast BoilerGuard or GasMonitor panels to provide traffic light alarm indication based on gas sensor alarm conditions with Green, Amber and Red warnings from a single unit, as well as having an audible alarm.
Key Features
- 24V AC/DC Power Supply
- Audible output can be disabled
- Can also be configured to provide Blue or White (3 colour max)
Dimensions
| Height: | 185 mm |
|---|---|
| Width: | 90 mm (Excluding Flanges) |
| Depth: | 62 mm |
Technical Specifications
| Power Supply: | 24V DC ± 10% |
|---|---|
| Power Consumption: | 50mA Max |
| Audible: | 90dB @ 30cm |
| Housing Material: | PC |
| IP Rating: | IP65 |
| Colour: | Black (RAL9005) or Grey (RAL7035) |
| Approval: | CE, UKCA |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| AVT24B | Traffic Light Alarm Indicator - Black |
| AVT24G | Traffic Light Alarm Indicator - Grey |
