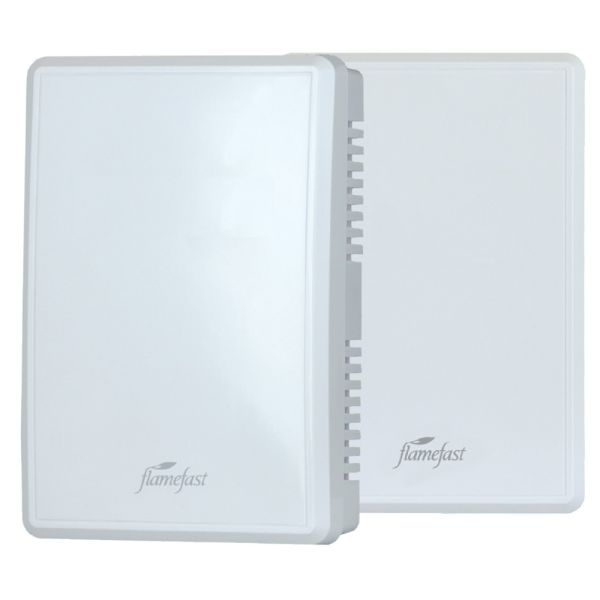

Room Temperature Sensor (RT)

The Flamefast Room Temperature Sensor is designed to complement our range of air quality sensors for when a cost effective temperature sensor is required.

Top Key Features

  • High accuracy
  • Stylish contemporary enclosure
  • Easily removable fascia with securing screw
  • Mounts onto any standard single gang junction box or conduit box
  • UK MANUFACTURED

Overview

The Flamefast Room Temperature Sensor is designed to complement our range of air quality sensors for when a cost effective temperature sensor is required.

Key Features

  • High accuracy
  • Stylish contemporary enclosure
  • Easily removable fascia with securing screw
  • Mounts onto any standard single gang junction box or conduit box
  • UK MANUFACTURED

Dimensions

Height:125 mm
Width:86 mm
Depth:36 mm

Technical Specifications

Temp Range:-50 to 150°C
Temp Accuracy:±0.2k @ 0 - 70°C
Sampling Method:Diffusion
Thermal Time Constant:15 seconds
Housing Material:PC/ABS
IP Rating:IP40
Colour:Pure White (RAL9010)

Part Numbers & Options / Accessories

PART NODESCRIPTION
RTRoom Temperature Sensor (10k3)

Data Sheets

General specifications in .pdf format

BIM Files

CAD drawings in .rfa format

There are currently no videos available
