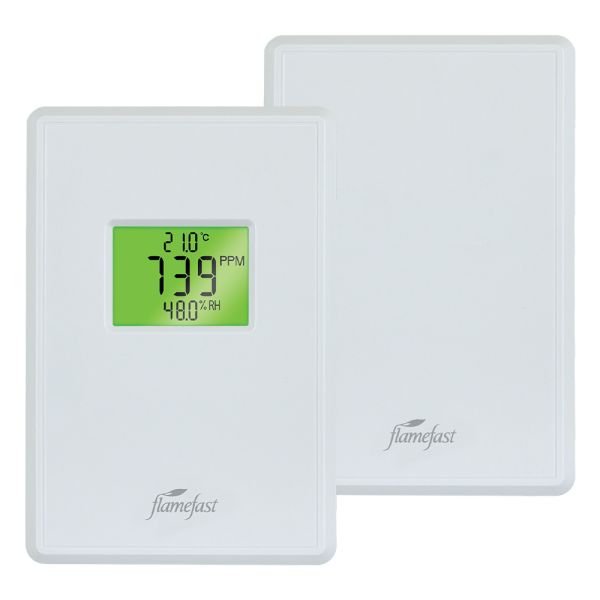

Transmitter Range (TR)
The Flamefast Transmitter range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity. With three 0-10V outputs, an on board relay and the ability to select between Analogue or Thermistor temperature output, our transmitter range is one of the most versatile units available.
Top Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block for ease of installation
- Optional traffic light readout
- 3x 0-10V outputs
- UK Manufactured
Overview
The Flamefast Transmitter range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity. With three 0-10V outputs, an on board relay and the ability to select between Analogue or Thermistor temperature output, our transmitter range is one of the most versatile units available.

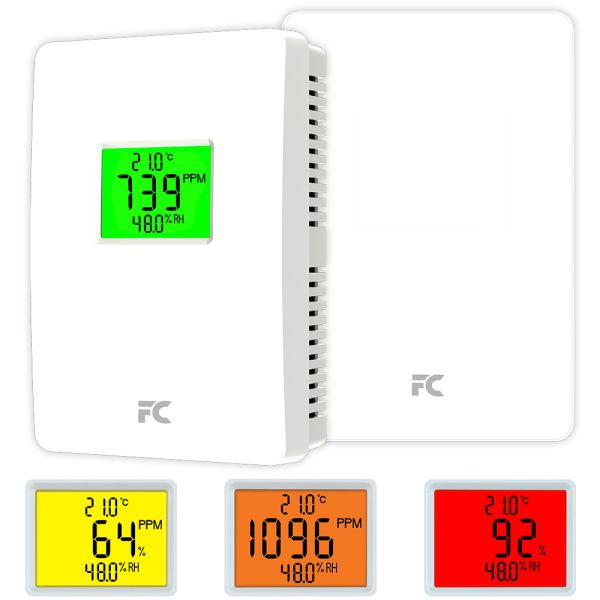

With the optional signature Flamefast traffic light display, the sensor can provide a clear, bold indication of the air quality in the monitored space.
This cost effective sensor range is ideal for any application, including natural and demand controlled ventilation as well as for integrating with our range of gas safety systems.
Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block for ease of installation
- Optional traffic light readout
- 3x 0-10V outputs
- Selectable Temperature output (0-10V or 10K3)
- Volt free contact output
- Typical 10+ year life expectancy
- Self-calibrating CO2 sensor
- Mounts onto any standard single gang junction box or conduit box
- UK MANUFACTURED
Dimensions
| Height: | 125 mm |
|---|---|
| Width: | 86 mm |
| Depth: | 36 mm |
Technical Specifications
| Power Supply: | 24V AC/DC ±10% | ||||
|---|---|---|---|---|---|
| Power Consumption: | 50Ma Max | ||||
| Power Output: | 3x 0-10V | ||||
| Thermister Outputs: | 10K3A1 | ||||
| VFC Output: | SPST - 100Ma @ 24V Max | ||||
| CO2 Range: | 0 - 2,000 ppm | ||||
| CO2 Accuracy: | ±40 ppm +3% @ NTP | ||||
| CO2 Display Resolution: | 1ppm | ||||
| CO2 Sensing Method: | Non Dispersive Infra-red (NDIR) | ||||
| CO2 Sensor Life: | 10+ Years | ||||
| Temp Range: | 0 - 50°C | ||||
| Temp Accuracy: | ±0.3°C @ 25°C | ||||
| Temp Display Resolution: | 0.1°C | ||||
| RH Range: | 0 - 100% | ||||
| RH Accuracy: | ±2% @20 - 80% | ||||
| RH Display Resolution: | 0.1% | ||||
| Operation Conditions: |
| ||||
| Sampling Method: | Diffusion | ||||
| Warm-up Time: | 30 seconds | ||||
| Housing Material: | Flame Retardant ABS | ||||
| IP Rating: | IP40 | ||||
| Colour: | Pure White (RAL9010) | ||||
| Approval: | CE, UKCA |
Installer Selectable Options
- 0-10V or Thermistor Temp output (only one used at any time)
- Traffic light and relay set points (see below)
The unit has two user selectable programmes to control the traffic light and volt free contact set points depending on the application.
These are as follows:
| Programme | Ventilation | Gas Safety |
| Green - Yellow | 1,000 ppm | 1,500 ppm |
| Yellow - Red | 1,500 ppm | 2,800 ppm |
| Relay Position | Normally Open | Normally Closed |
| Relay Set Point | 1,000 ppm | 4,500 ppm |
NEED THE REQUIREMENTS?
CommercialKitchens
TeachingAreas
Plant Rooms
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| TR-CO2T | Transmitter - CO2 & Temp |
| TR-CO2TH | Transmitter - CO2, Temp & RH |
| TR-TH | Transmitter - Temp & RH |
| TR-T | Transmitter - Temp |
| TR- CO2TL | Transmitter - CO2 & Temp c/w LCD |
| TR-CO2THL | Transmitter - CO2, Temp & RH c/w LCD |
| TR-THL | Transmitter - Temp & RH c/w LCD |
| TR-TL | Transmitter - Temp c/w LCD |
-
