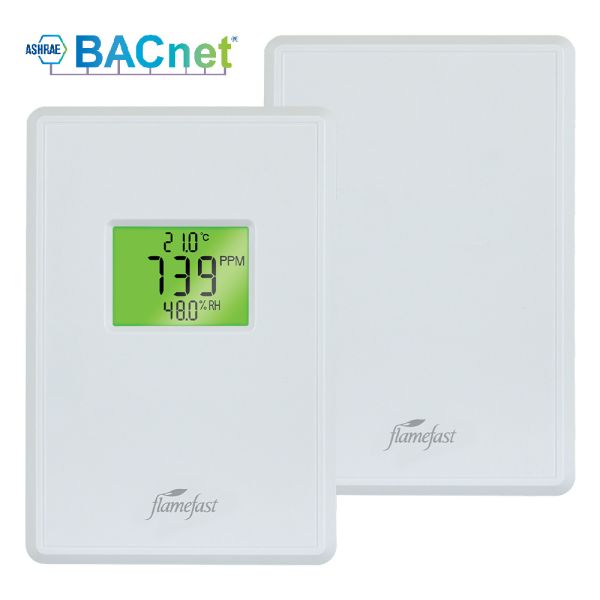

BACnet Sensor Range (BAC)
The Flamefast BACnet sensor range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity, and the BACnet MS/TP interface allows for the sensors to be integrated with much larger systems over a simple two wire network.
Top Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block for ease of installation
- Optional traffic light readout
- Automatic object configuration
- 3x 0-10V outputs (Network writeable)
- UK Manufactured
Overview
The Flamefast BACnet sensor range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity, and the BACnet MS/TP interface allows for the sensors to be integrated with much larger systems over a simple two wire network.
With the optional signature Flamefast traffic light display, the sensor can provide a clear, bold indication of the air quality in the monitored space.
As default the three 0-10V outputs will provide a full scale linear output for the CO2, Temp & RH levels, however these analogue outputs can be rescaled or configured to be controlled over the network, negating the requirement for separate local controllers.
There is also the option to assign each of the analogue outputs to any of the sensor values, and the on board relay can be configured to activate based on CO2, Temperature or RH levels, or all can be controlled over the network.
This cost effective and versatile sensor is ideal for any application, including natural and demand controlled ventilation as well as for integrating with our range of gas safety systems.
Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block for ease of installation
- Optional traffic light readout
- Automatic object configuration
- 3x 0-10V outputs (Network writeable)
- Selectable Temperature output (0-10V or 10K3)
- Volt free contact output (Network writeable)
- Typical 10+ year life expectancy
- Self-calibrating CO2 sensor
- Mounts onto any standard single gang junction box or conduit box
- UK MANUFACTURED
Dimensions
| Height: | 125 mm |
|---|---|
| Width: | 86 mm |
| Depth: | 36 mm |
Technical Specifications
| Power Supply: | 24V AC/DC ±10% | ||||
|---|---|---|---|---|---|
| Power Consumption: | 50Ma Max | ||||
| BACnet: | MS/TP over RS485 Baud: 9k6, 19k2, 38k4 or 76k8 127 Address (1/10th Load) Full specification available on request | ||||
| Analogue Outputs: | 3x 0-10V | ||||
| Thermister Outputs: | 10K3A1 | ||||
| VFC Output: | SPST - 100Ma @ 24V Max | ||||
| CO2 Range: | 0 - 10,000 ppm | ||||
| CO2 Output Scale: | 0 - 2,000 / 5,000 ppm | ||||
| CO2 Accuracy: | ±40 ppm +3% @ NTP | ||||
| CO2 Display Resolution: | 1 ppm | ||||
| CO2 Sensing Method: | Non Dispersive Infra-red (NDIR) | ||||
| CO2 Sensor Life: | 10+ Years | ||||
| Temp Range: | 0 - 50°C | ||||
| Temp Accuracy: | ±0.3°C @ 25°C | ||||
| Temp Display Resolution: | 0.1°C | ||||
| RH Range: | 0 - 100% | ||||
| RH Accuracy: | ±2% @ 20 - 80% | ||||
| RH Display Resolution: | 0.1% | ||||
| Operation Conditions: |
| ||||
| Sampling Method: | Diffusion | ||||
| Warm-up Time: | 30 seconds | ||||
| Housing Material: | PC/ABS | ||||
| IP Rating: | IP40 | ||||
| Colour: | Pure White (RAL9010) | ||||
| Approval: | CE, UKCA |
Installer Selectable Options
- Backlight (Enable/Disable)
- Replaces PPM reading with 'CO2' on display
- 0-10V or Thermistor Temp output (only one used at any time)
- CO2 Analogue output (2,000 / 5,000 ppm)
- Traffic light and relay set points (see below)
The unit has four user selectable programmes to control the display colour and volt free contact set points depending on the application. These are as follows:
| Programme | Ventilation | Gas Safety |
| Green - Yellow | 1,000 ppm | 1,500 ppm |
| Yellow - Red | 1,500 ppm | 2,800 ppm |
| Relay Position | Normally Open | Normally Closed |
| Relay Set Point | 1,000 ppm | 4,500 ppm |
NEED THE REQUIREMENTS?
CommercialKitchens
TeachingAreas
Plant Rooms
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| BAC-CO2T | BACnet Sensor - CO2 & Temp |
| BAC-CO2TH | BACnet Sensor - CO2, Temp & RH |
| BAC-TH | BACnet Sensor - Temp & RH |
| BAC-T | BACnet Sensor - Temp |
| BAC-CO2TL | BACnet Sensor - CO2 & Temp c/w LCD |
| BAC-CO2THL | BACnet Sensor - CO2, Temp & RH c/w LCD |
| BAC-THL | BACnet Sensor - Temp & RH c/w LCD |
| BAC-TL | BACnet Sensor - Temp c/w LCD |
-
