CO2, TVOC, Temp & RH Monitor (CO2M)

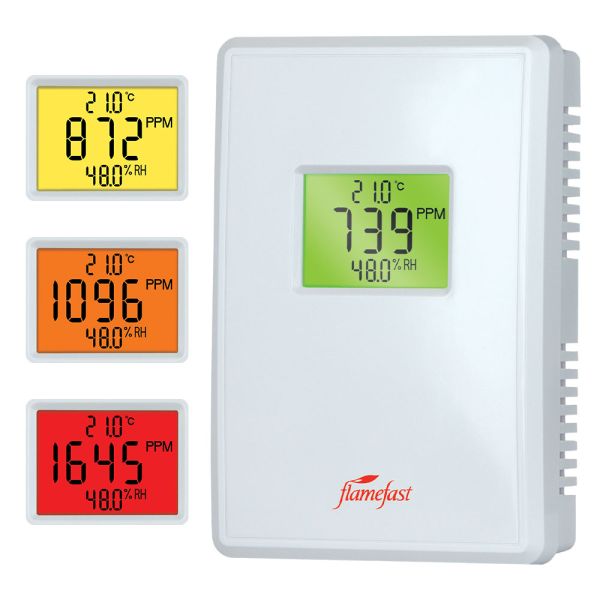

The Flamefast Carbon Dioxide, Total Volatile Organic Compounds (TVOC), Temperature and Relative Humidity Monitor provides a bold visual indication of air quality using our signature multicolour backlit display, as well as having a digital readout to display the current levels/ concentrations.
Top Key Features
- 100-240V AC Power Supply
- Bold Multicoloured Indication
- CO2 Parts Per Million Readout
- TVOC μg/m³ Readout
- USB-C Interface for full
- UK Manufactured
Overview
The Flamefast Carbon Dioxide, Total Volatile Organic Compounds (TVOC), Temperature and Relative Humidity Monitor provides a bold visual indication of air quality using our signature multicolour backlit display, as well as having a digital readout to display the current levels/ concentrations.
CO2 levels are considered a good indication of general air quality, whilst VOCs cover a wide range of airborne contaminants from furnishings, solvents etc.
With a built-in mains rated volt free contact, the unit can be easily interfaced with Ventilation and Window Control Systems, as well as Gas Safety Systems. Or it can simply be used as a visual indicator to advise further ventilation is required.
The unit offers four pre-set programs, two aimed at ventilation and two aimed at gas safety, however with the USB-C interface, every setting of the unit can be configured, including the display behaviour, alarm levels, relay behaviour and much more.
Key Features
- 100-240V AC Power Supply
- Bold Multicoloured Indication
- CO2 Parts Per Million Readout
- TVOC μg/m³ Readout
- USB-C Interface for full customisation
- Mains rated volt free contact output
- Typical 10+ year life expectancy
- Self-calibrating CO2 sensor
- UK MANUFACTURED
Dimensions
| Height: | 125 mm |
|---|---|
| Width: | 86 mm |
| Depth: | 36 mm |
Technical Specifications
| Power Supply: | 100 - 240V AC 50/60Hz | ||||
|---|---|---|---|---|---|
| Power Consumption: | 3W Max | ||||
| VFC Output: | SPST - 5A @ 230V Max | ||||
| Audible: | 60dB @ 30cm | ||||
| CO2 Range: | 0 - 10,00ppm | ||||
| CO2 Accuracy: | ±40 ppm +3% @ NTP | ||||
| CO2 Display Resolution: | 1ppm | ||||
| CO2 Sensing Method: | Non Dispersive Infra-red (NDIR) | ||||
| CO2 Sensor Life: | 10+ Years | ||||
| TVOC Range: | 0 ~ 2,000μg/m3 | ||||
| TVOC Accuracy: | ±5% @ NTP | ||||
| TVOC Display Resolution: | 1μg/m3 | ||||
| TVOC Sensing Method: | Metal-oxide (MOx) | ||||
| TVOC Sensor Life: | 10+ Year | ||||
| Temp Range: | 0 ~ 50°C | ||||
| Temp Accuracy: | ±0.5°C @ 25°C | ||||
| Temp Display Resolution: | 0.1°C | ||||
| RH Range: | 0 ~ 100% | ||||
| RH Accuracy: | ±2% @ 20 ~ 80% | ||||
| RH Display Resolution: | 0.1% | ||||
| Operation Conditions: |
| ||||
| Sampling Method: | Diffusion | ||||
| IP Rating: | IP40 | ||||
| Housing Material: | PC/ABS | ||||
| Colour: | Pure White (RAL9010) | ||||
| Approval: | CE, UKCA |
Installer Selectable Options
| Audible Alarm | Enable/Disable |
| Backlight | Enable/Disable |
| Temperature Readout | Enable/Disable |
| RH Readout | Enable/Disable |
| Display | Concentrations / Ventilation Performance |

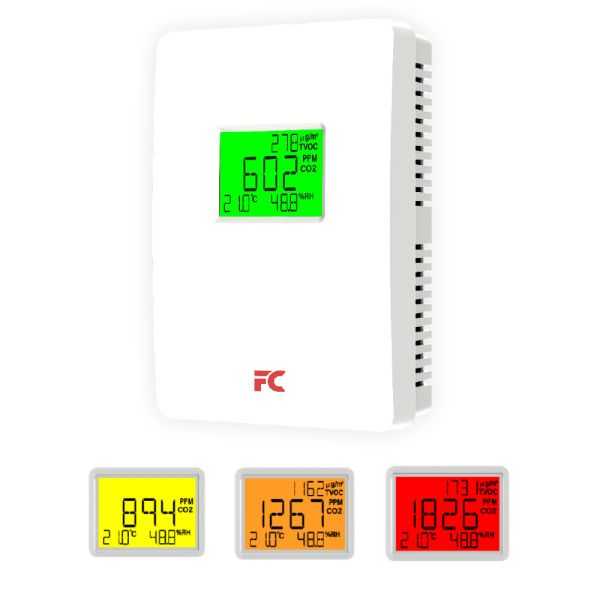

The unit has four user selectable programmes to control the display colour and volt free contact set points depending on the application. These are as follows;
| Programme | VENTILATION | GAS SAFETY | ||
| Green - Yellow | 800ppm / 530μg/m3 | 800ppm / 530μg/m3 | ||
| Yellow - Amber | 1000ppm / 935μg/m3 | 1000ppm / 935μg/m3 | ||
| Amber - Red | 1500ppm / 1620μg/m3 | 1500ppm / 1620μg/m3 | ||
| Relay Set Point | 800ppm / 530μg/m3 | 1000ppm / 935μg/m3 | 2800ppm | 4500ppm |
| Relay Position | N/O | N/O | N/O | N/O |
| Audible Alarm | 5000ppm | |||
NEED THE REQUIREMENTS?
CommercialKitchens
TeachingAreas
Plant Rooms
Quality and Reliability as Standard
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| CO2M | CO2, Temp & RH Monitor (230V) |
| CO2M-AQ | CO2, TVOC, Temp & RH Monitor (230V) |
-
