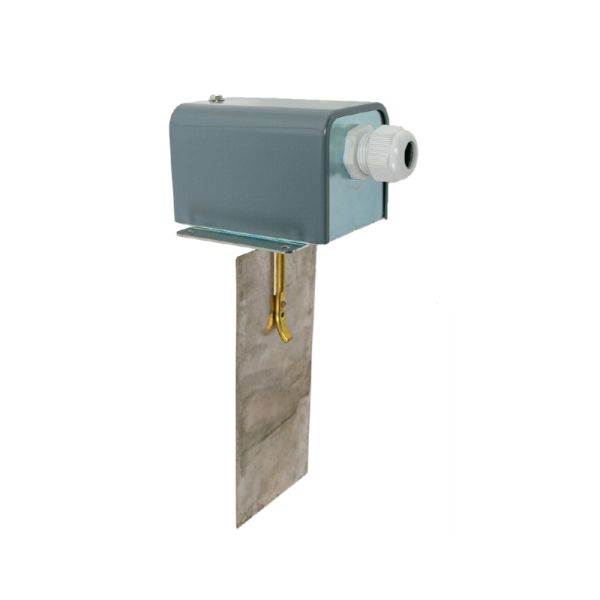

Air Flow Switch (FSPA)
The Air Paddle Switch is designed to provide a switched output to prove flow or no flow within duct work from 1” to 6”, and can provide a cost effective solution where pressure cannot be accurately used to monitor flow.
Overview
The Air Paddle Switch is designed to provide a switched output to prove flow or no flow within duct work from 1” to 6”, and can provide a cost effective solution where pressure cannot be accurately used to monitor flow.
Technical Specifications
| VFC Output: | SPDT 0.25A @ 250V Max | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow Rate: |
| |||||||||||||||
| Paddle Material: | Stainless Steel (304) | |||||||||||||||
| Media Temp: | -20 ~ 80°C | |||||||||||||||
| Connection / Connectivity: | 1” BSPT | |||||||||||||||
| IP Rating: | IP54 | |||||||||||||||
| Approval: | CE |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| FSPA | Flow Switch (Paddle) - Air |
Data Sheets
General specifications in .pdf format
