Transmitter Range (TR)
The Transmitter range from Flamefast is one of the most cost effective air quality transmitters available, with the ability to monitor Temperature, Relative Humidity, then either Carbon Dioxide (CO2) or Total Volatile Organic Compounds (TVOC).
Top Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block for ease of installation
- Optional multi-colour display
- 3x 0-10V outputs
- UK Manufactured
Overview
The Transmitter range from Flamefast is one of the most cost effective air quality transmitters available, with the ability to monitor Temperature, Relative Humidity, then either Carbon Dioxide (CO2) or Total Volatile Organic Compounds (TVOC).
With a wide range of output, including three 0-10V outputs, an on board relay, and the ability to select between Analogue or a Direct Thermistor temperature output, this versatile units is suitable for most general HVAC applications.

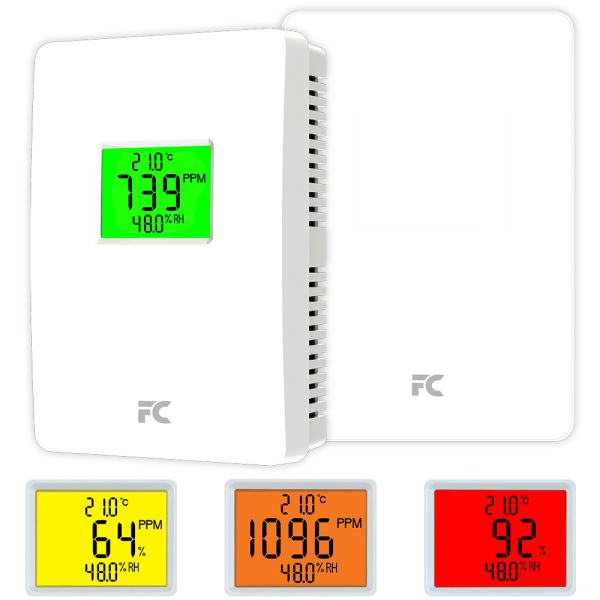

With the optional signature Flamefast multi-colour display, the sensor can provide a clear, bold indication of the air quality in the monitored space.
Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block for ease of installation
- Optional multi-colour display
- 3x 0-10V outputs
- Selectable Temperature output (0-10V or 10K3)
- Volt free contact output
- Typical 10+ year life expectancy
- Mounts onto any standard single gang junction box or conduit box
- UK MANUFACTURED
Dimensions
| Height: | 125 mm |
|---|---|
| Width: | 86 mm |
| Depth: | 36 mm |
Technical Specifications
| Power Supply: | 24V AC/DC ±10% | ||||
|---|---|---|---|---|---|
| Power Consumption: | 50mA Max | ||||
| Power Output: | 3x 0-10V | ||||
| Thermister Outputs: | 10K3A1 | ||||
| VFC Output: | SPST - 100mA @ 24V Max | ||||
| CO2 Range: | 0 - 10,000 ppm | ||||
| CO2 Output Scale: | 0 ~ 2,000 / 5,000ppm | ||||
| CO2 Accuracy: | ±40 ppm +3% @ NTP | ||||
| CO2 Display Resolution: | 1ppm | ||||
| CO2 Sensing Method: | Non Dispersive Infra-red (NDIR) | ||||
| CO2 Sensor Life: | 10+ Years | ||||
| TVOC Range: | 0 ~ 100% VOC Index | ||||
| TVOC Output Scale: | 0 ~ 100% | ||||
| TVOC Accuracy: | ±5% @ NTP | ||||
| TVOC Display Resolution: | 1% | ||||
| TVOC Sensing Method: | Metal-oxide (MOx) | ||||
| TVOC Sensor Life: | 10+ Years | ||||
| Temp Range: | 0 - 50°C | ||||
| Temp Accuracy: | ±0.3°C @ 25°C | ||||
| Temp Display Resolution: | 0.1°C | ||||
| RH Range: | 0 - 100% | ||||
| RH Accuracy: | ±2% @20 ~ 80% | ||||
| RH Display Resolution: | 0.1% | ||||
| Operation Conditions: |
| ||||
| Sampling Method: | Diffusion | ||||
| Warm-up Time: | 30 seconds | ||||
| IP Rating: | IP40 | ||||
| Colour: | Pure White (RAL9010) | ||||
| Approval: | CE, UKCA |
Installer Selectable Options
The unit has two user selectable programmes to control the traffic light and volt free contact set point depending on the application.
These are as follows:
| Programme | Ventilation | Gas Safety |
| Green - Yellow | 800ppm / 40% | 800ppm / 40% |
| Yellow - Amber | 1000ppm / 60% | 1500ppm / 60% |
| Amber - Red | 1500ppm / 80% | 2800ppm / 80% |
| Relay Position | Normally Open | Normally Closed |
| Relay Set Point | 800ppm / 40% | 4500 ppm |
NEED THE REQUIREMENTS?
CommercialKitchens
TeachingAreas
Plant Rooms
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| TR-CO2T | Transmitter - CO2 & Temp |
| TR-CO2TL | Transmitter - CO2 & Temp c/w LCD |
| TR-CO2TH | Transmitter - CO2, Temp & RH |
| TR-CO2THL | Transmitter - CO2, Temp & RH c/w LCD |
| TR-AQT | Transmitter - TVOC & Temp |
| TR-AQTL | Transmitter - TVOC & Temp c/w LCD |
| TR-AQTH | Transmitter - TVOC, Temp & RH |
| TR-AQTHL | Transmitter - TVOC, Temp & RH c/w LCD |
| TR-TH | Transmitter - Temp & RH |
| TR-THL | Transmitter - Temp & RH c/w LCD |
| TR-T | Transmitter - Temp |
| TR-TL | Transmitter - Temp c/w LCD |
-
