Gas Solenoid Valves
This Class “A” direct acting, normally closed Gas Solenoid Valve can be used in conjunction with any GasGuard panel for low pressure isolation, proving and interlocking systems. The twin port design (excluding ½") allows easy installation of the Flamefast Pressure Transmitter or CPI switches.
Exact specification and manufacturer may vary.
Overview
This Class “A” direct acting, normally closed Gas Solenoid Valve can be used in conjunction with any GasGuard panel for low pressure isolation, proving and interlocking systems. The twin port design (excluding ½") allows easy installation of the Flamefast Pressure Transmitter or CPI switches.
Exact specification and manufacturer may vary.
Technical Specifications
| Power Supply: | 230VAC 50Hz |
|---|---|
| Internal Material: | Aluminium |
| Seal Material: | NBR |
| Media Temp: | -10°C ~ 90°C |
| IP Rating: | IP54 |
| Housing Material: | Aluminium |
| Approval: | CE, UKCA, EN161 |
Quality and Reliability as Standard
Additional Information
| PART NO | SIZE | SIZE | CONN | MAX OP PRESS | NOM PWR | OVERALL DIMENSIONS | |||
| Height | Face-Face | Depth | Weight | ||||||
| (inch) | (mm) | (mB) | (W) | (mm) | (mm) | (mm) | (Kg) | ||
| SV15 | ½ | 15 | BSP | 360 | 15 | 112 | 72 | 52 | 1.1 |
| SV20 | ¾ | 20 | BSP | 360 | 22 | 156 | 86 | 70 | 2.2 |
| SV25 | 1 | 25 | BSP | 360 | 22 | 156 | 100 | 75 | 2.2 |
| SV32 | 1 ¼ | 32 | BSP | 360 | 42 | 214 | 150 | 110 | 5.0 |
| SV40 | 1 ½ | 40 | BSP | 360 | 42 | 214 | 150 | 110 | 5.0 |
| SV50 | 2 | 50 | BSP | 360 | 50 | 220 | 150 | 135 | 6.2 |
| SV65 | 2½ | 65 | PN16 | 360 | 72 | 343 | 310 | 200 | 15.0 |
| SV80 | 3 | 80 | PN16 | 360 | 72 | 343 | 310 | 200 | 15.3 |
| SV100 | 4 | 100 | PN16 | 360 | 175 | 384 | 350 | 250 | 36.4 |
| SV125 | 5 | 125 | PN16 | 200 | 290 | 592 | 400 | 300 | 108.0 |
| SV150 | 6 | 150 | PN16 | 200 | 290 | 630 | 480 | 300 | 129.0 |
| SV200 | 8 | 200 | PN16 | 200 | 290 | 724 | 600 | 300 | 160.0 |
LARGER SIZES AVAILABLE ON REQUEST
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| SV15 | ½" Gas Solenoid Valve (230V) |
| SV20 | ¾" Gas Solenoid Valve (230V) |
| SV25 | 1” Gas Solenoid Valve (230V) |
| SV32 | 1¼" Gas Solenoid Valve (230V) |
| SV40 | 1½" Gas Solenoid Valve (230V) |
| SV50 | 2” Gas Solenoid Valve (230V) |
| SV65 | 2½" Gas Solenoid Valve (230V) |
| SV80 | 3" Gas Solenoid Valve (230V) |
| SV100 | 4" Gas Solenoid Valve (230V) |
| SV150 | 6" Gas Solenoid Valve (230V) |
| SV200 | 6" Gas Solenoid Valve (230V) - Electro-hydraulic |
LARGER SIZES AVAILABLE ON REQUEST
Data Sheets
General specifications in .pdf format
-
- Water Solenoid ValvesThis 2 Way, Normally Closed, Servo-assisted Diaphragm solenoid valve is...
- Oil Solenoid ValvesThis servo-operated general purpose solenoid valve is suitable for a wide...

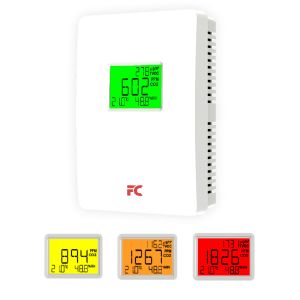

- CO2, TVOC, Temp & RH Monitor (CO2M)The Flamefast Carbon Dioxide, Total Volatile Organic Compounds (TVOC),...
