Calibration Gas
To complement our range of Gas Sensors and Detectors, Flamefast offer Calibration Gas and Calibration kits. These can be used to prove the correct operation of sensors (bump test), as well as to provide the required annual calibration.
Overview
To complement our range of Gas Sensors and Detectors, Flamefast offer Calibration Gas and Calibration kits. These can be used to prove the correct operation of sensors (bump test), as well as to provide the required annual calibration.

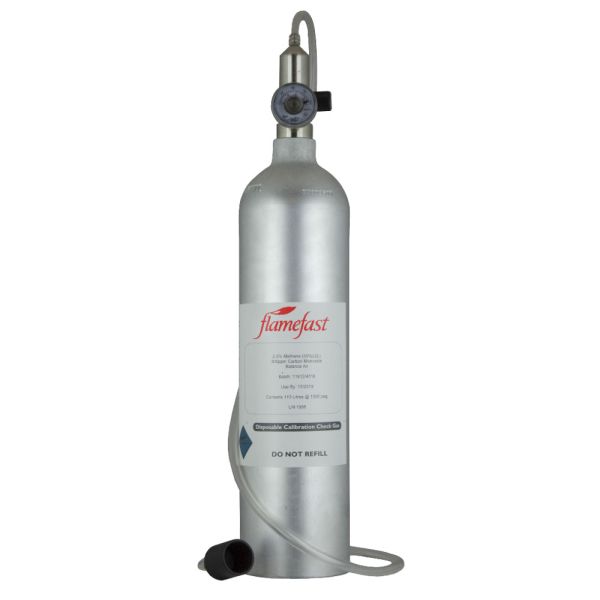

With the 116l cylinder and 0.5l/min fixed flow regulator, you will get approximately 220 minutes of gas, which can be used to either bump test or calibrate 100 to 300 sensors.
The Calibration Gas must be ordered specific to the target gas of the sensors you are working with, and they are nonrefillable so must be disposed of appropriately.
Technical Specifications
| Cylinder Volume: | 116 Litre |
|---|---|
| Cylinder Pressure: | 70 Bar |
| Dangerous Goods Class: | 2.2 (Non-flammable Compressed Gas) |
Composition
The standard cylinder provided is a dual gas cylinder so can be used for most plant room applications, and includes:
| Methane | 2.5% (50% LEL) |
| Carbon Monoxide | 200ppm |
| Balance | Air |
Other Gases are available on request - contact to discuss your requirements
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| CAL-GAS | 116l Calibration Gas Cylinder (Specify Mixture) |
| CAL-KIT | 0.5l/m Fixed flow regulator, hood & 2m hose |
Data Sheets
General specifications in .pdf format
-
