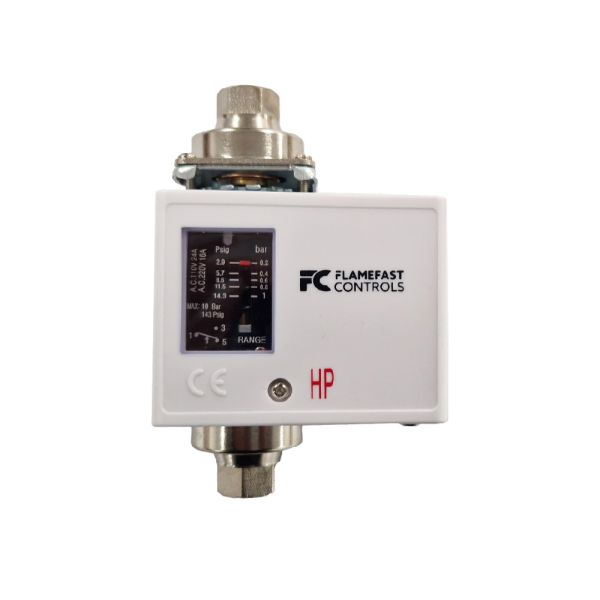

Liquid DP Switch (LDPS)
The Flamefast Liquid Differential Pressure Switch is ideal for monitoring and controlling various pumps, drives and valves. With a low range and switching differential, fine tolerances can be achieved for optimum response.
Overview
The Flamefast Liquid Differential Pressure Switch is ideal for monitoring and controlling various pumps, drives and valves. With a low range and switching differential, fine tolerances can be achieved for optimum response.
The LDPS is compatible with a wide range of media, including water, steam, oil and air. The unit also has a manual lever for simple local testing of the switch.
Technical Specifications
| Pressure Type: | Differential | ||||
|---|---|---|---|---|---|
| VFC Output: | SPDT - 12A @ 250V Max | ||||
| Media Temp: | -40 ~ 120°C (range) | ||||
| Process Connections: | 2x G1/4” Female | ||||
| Pressure Range: | 0.2 ~ 1.0 Bar | ||||
| Operation Conditions: |
| ||||
| Factory Settng: | 0.2 Bar | ||||
| Switch Differential: | <0.2 Bar | ||||
| Max Pressure: | 10.0 Bar | ||||
| Approval: | CE |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| LDPS-01 | Liquid DP Switch (0.2 ~ 1 Bar) c/w Mounting Bracket |
| LDPS-KIT | LDPS Installation Kit (2x Capillary + 4 Adaptors) |
Data Sheets
General specifications in .pdf format
