Plant Temperature Sensor (TDx)
Technical Specifications
| Sensor Type: | 10K3A1 Thermistor |
|---|
| Temp Range: | -20 ~ 120°C (temp media range) |
|---|
| Temp Accuracy: | ±0.3°C @ 0 ~ 70°C |
|---|
| Operation Conditions: |
| Temp |
0 ~ 50°C |
| Humidity |
0 ~ 95% (NC) |
|
|---|
| Body Material: | PC/ABS |
|---|
| IP Rating: | IP65 |
|---|
| Colour: | Grey/Black |
|---|
| Approval: | CE, UKCA |
|---|
| DUCT |
| Probe Length | 150 / 65 mm |
| Probe Diameter | 6 mm |
| Probe Material | Stainless Steel |
| IMMERSION |
| Pocket Length | 150 / 65 mm |
| Pocket Thread | ½" BSPT |
| Pocket Material | Stainless Steel (316L) |
| Max System Pressure | 16 bar |
| CLAMP ON |
| Cable Length | 1m |
| Metal Cable Tie | 4.6 x 360mm |
| DIRECT CLAMP ON |
| Lug Material | Brass |
| FLYING LEAD |
| Cable Length | 2m |
| SUBMERSIBLE |
| Cable Length | 5m |
| Cable Material | TPE |
| OUTSIDE |
| Lug Material | Brass |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |

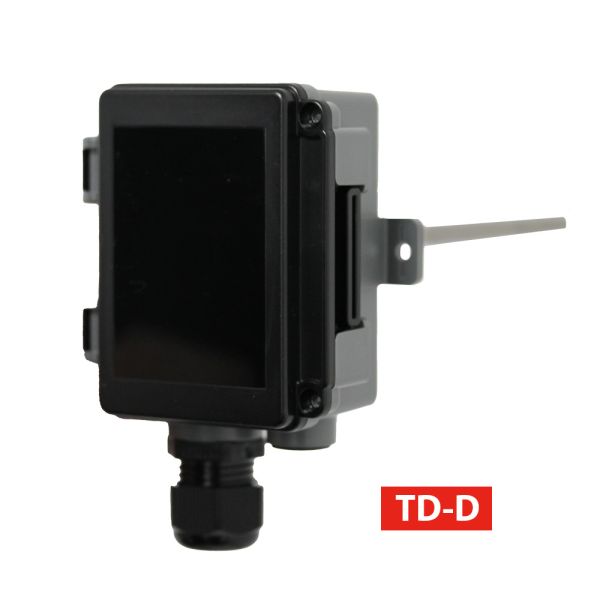

| TD-D | Temp - Direct (10K3A1) - Duct (150mm) |
| TD-D-65 | Temp - Direct (10K3A1) - Duct (65mm) |
| TD-I | Temp - Direct (10K3A1) - Immersion (150mm) c/w Pocket |
| TD-I-65 | Temp - Direct (10K3A1) - Immersion (65mm) c/w Pocket |
| TD-C | Temp - Direct (10K3A1) - Clamp On (1m Cable) c/w Tie |
| TD-CD | Temp - Direct (10K3A1) - Clamp On (Direct) |
| TD-F | Temp - Direct (10K3A1) - Flying Lead (2m Cable) |
| TD-S | Temp - Direct (10K3A1) - Flying Lead (5m) - IP68 (Submersible) |
| TD-O | Temp - Direct (10K3A1) - Outside |
| TD-OR | Temp - Direct (10K3A1) - Outside c/w Rad Shield |
| | |
| TX-P150 | Stainless Steel Immersion Pocket (150mm) |
| TX-P65 | Stainless Steel Immersion Pocket (65mm) |
