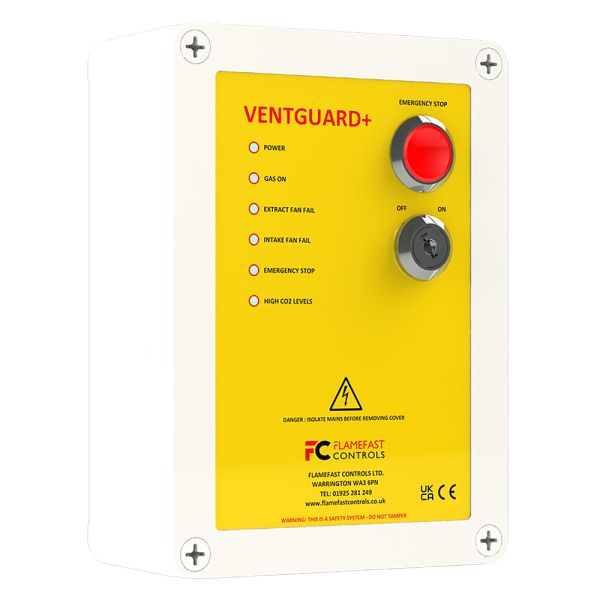

VentGuard+ (VG)
The VentGuard Plus is a cost effective BS6173 and IGEM/ UP/19 compliant ventilation interlock, with built in fan current monitors for the intake and extract fans however can still be used with Air DP Switches.
Top Key Features
- Clear LED indication
- Push Button Fan Current Monitor configuration
- Selectable alarm tolerance
- Wide current range
- Integral 2 Channel Fan Current Monitor
- UK MANUFACTURED
Overview
The VentGuard Plus is a cost effective BS6173 and IGEM/ UP/19 compliant ventilation interlock, with built in fan current monitors for the intake and extract fans however can still be used with Air DP Switches.
The push button setup for the Fan Current Monitor configuration makes commissioning simple. Just set your fan to the Min/Max speeds, press the button to set, then select your tolerance.
With dedicated interfaces and LEDs for the intake and extract fans, the VentGuard will provide an indication of any ventilation issues however it will not shut down the gas supply until the ventilation has not been operating for a full 30 seconds to avoid any nuisance tripping.
Key Features
- Clear LED indication
- Push Button Fan Current Monitor configuration
- Selectable alarm tolerance
- Wide current range
- Integral 2 Channel Fan Current Monitor
- Interfaces for:
- Intake Fan DP
- Extract Fan DP
- CO2 Sensors
- Remote Emergency Stop Buttons - Mains rated status relay for external monitoring
- Built in time delays to avoid nuisance tripping
- 5 Year Warranty
- UK MANUFACTURED
Dimensions
| Height: | 180 mm |
|---|---|
| Width: | 130 mm |
| Depth: | 65mm / 70mm including Stop & Key Switch |
Technical Specifications
| Power Supply: | 90 ~ 300VAC 50/60Hz |
|---|---|
| Power Consumption: | 3W Max (Panel Only) |
| Fan Current Rating: | 0.2 ~ 20A @ 230V |
| Power Output: | Gas Solenoid Switched Mains (5A Fused) Valve Status SPDT - 5A @ 250V Max |
| Body Material: | PC/ABS |
| IP Rating: | IP65 |
| Colour: | Pure White (RAL 9010) |
| Approval: | CE, UKCA |
External Device Interfaces
| CO2 Monitor | LV Signal to monitor external VFC |
| Intake Fan | LV Signal to monitor external VFC |
| Extract Fan | LV Signal to monitor external VFC |
| Remote Stop | LV Signal to monitor external VFC |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| VGP-PO | VentGuard Plus Panel |
| CO2M | CO2, Temp & RH Monitor (230V) |
| ADPS | Air Differential Pressure Switch (20-300Pa) c/w Duct Kit |
| RSTOP-C | Remote Emergency Stop - Call Point |
| SVxx | XXmm Gas Solenoid Valve (230V) - Specify Size |
Data Sheets
General specifications in .pdf format
-
