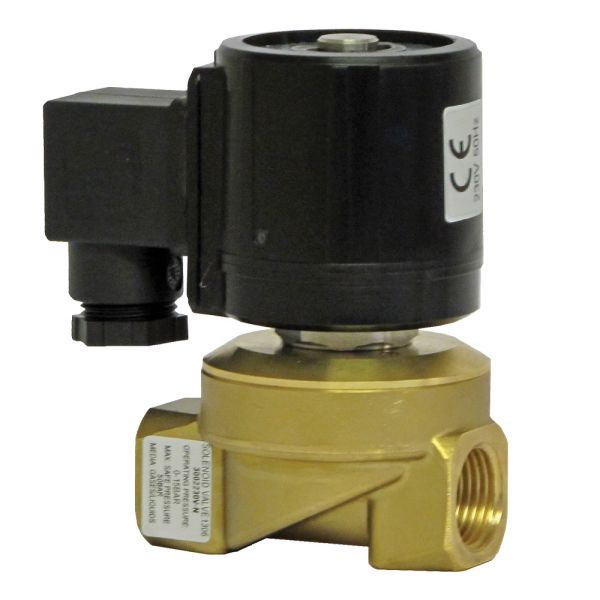

Oil Solenoid Valves
This servo-operated general purpose solenoid valve is suitable for a wide range of media including Air, Water, and Light Oils (up to 25 centistokes). Due to the assisted lift mechanism this valve can operate with a zero pressure differential.
When used with a Flamefast BoilerGuard this can be used to provide a complete and cost effective safety system for isolating fuel oil supplies to plant.
Overview
This servo-operated general purpose solenoid valve is suitable for a wide range of media including Air, Water, and Light Oils (up to 25 centistokes). Due to the assisted lift mechanism this valve can operate with a zero pressure differential.
When used with a Flamefast BoilerGuard this can be used to provide a complete and cost effective safety system for isolating fuel oil supplies to plant.
Technical Specifications
| Power Supply: | 230VAC 50Hz |
|---|---|
| Power Consumption: | 25W |
| Pressure Range: | 15Bar (<=1") / 5Bar (>1") - Max |
| Body Material: | Brass |
| Internal Material: | Brass & Stainless Steel |
| Seal Material: | Nitrile |
| Media Temp: | -10°C to 80°C |
| Connection / Connectivity: | BSP |
| IP Rating: | IP65 |
| Approval: | CE, UKCA |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| OV15 | ½" Oil Solenoid Valve (230V) |
| OV20 | ¾" Oil Solenoid Valve (230V) |
| OV25 | 1" Oil Solenoid Valve (230V) |
| OV32 | 1¼" Oil Solenoid Valve (230V) |
| OV40 | 1½" Oil Solenoid Valve (230V) |
| OV50 | 2" Oil Solenoid Valve (230V) |
Data Sheets
General specifications in .pdf format
-
Remote Emergency Stop ButtonOur range of Remote Emergency Stop Buttons can be easily interfaced with any... - BoilerGuardThe BoilerGuard is a low cost complete plant room safety system providing a...
- Gas Solenoid ValvesThis Class “A” direct acting, normally closed Gas Solenoid Valve can be...

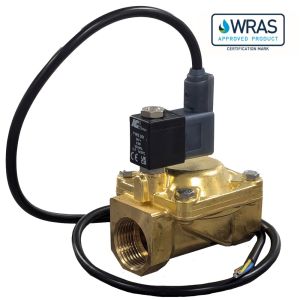

- Water Solenoid ValvesThis 2 Way, Normally Closed, Servo-assisted Diaphragm solenoid valve is...
