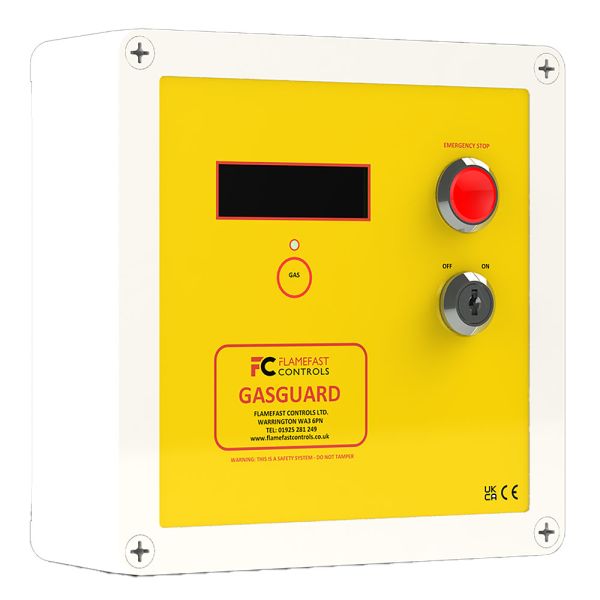

GasGuard
The NEW GasGuard gas pressure proving system is designed to meet the requirements of IGEM/UP/11 for educational establishments and is a BS6173 and IGEM/ UP/19 compliant ventilation interlock.
Top Key Features
- New stylish enclosure
- Clear negative display
- Optional BACnet/Modbus module
- Alarm and Event logs as standard
- 24VDC auxiliary power output
Overview
The NEW GasGuard gas pressure proving system is designed to meet the requirements of IGEM/UP/11 for educational establishments and is a BS6173 and IGEM/UP/19 compliant ventilation interlock.
With a new stylish housing, negative display, and internal hinge system, the GasGuard looks at home in any new installation.
Along with a fresh new exterior, the GasGuard has also had a major internal overhaul and new user interface, with new menus to allow simple system setup, to view system status, and to access the data-logging function.
The GasGuard will allow the users to view the last 50 alarms through the panel display, and a full event log is also available when using the USB interface and Flamefast App, all supported by a real time clock.
Key Features
- New stylish enclosure
- Clear negative display
- Optional BACnet/Modbus module
- Alarm and Event logs as standard
- 24VDC auxiliary power output
- Interfaces for:
- Gas Sensors
- CO2 Sensor
- Ventilation Systems
- Remote Emergency Stop Buttons
- Fire Alarm System - High accuracy Pressure Transmitter
- 5 Year Warranty
- UK MANUFACTURED
Dimensions
| Height: | 180 mm |
|---|---|
| Width: | 180 mm |
| Depth: | 60 mm 70 mm - including stop & key switch |
Technical Specifications
| Power Supply: | 85 ~ 300VAC 50/60Hz | ||||
|---|---|---|---|---|---|
| Power Consumption: | 20W Max (Panel Only) | ||||
| Power Output: | Gas Solenoid Switched Mains (5A Fused) Valve Status SPST - 5A @ 250V Max BACnet MS/TP or Modbus RTU (with -COM) | ||||
| Operation Conditions: |
| ||||
| Body Material: | PC/ABS | ||||
| IP Rating: | IP65 | ||||
| Colour: | Pure White (RAL 9010) | ||||
| Approval: | CE, UKCA |
External Device Interfaces
| Pressure Transmitter | PT00 Connection |
| 24V Out | 24V DC Power Out - 600mA (for TR, SS, FGS) |
| Gas Sensor | BACnet Interface for FGS Range |
| CO2 Sensor | LV Signal to monitor external VFC |
| Intake Fan | LV Signal to monitor external VFC |
| Extract Fan | LV Signal to monitor external VFC |
| Remote Stop | LV Signal to monitor external VFC |
| Fire Alarm | LV Signal to monitor external VFC |
Installer Selectable Options
| Gas Proving Fill/Test Time | 5s Fill + 30s Test / 10s Fill + 60s Test |
| Gas Availability Timer | Off / 4 / 8 / 16 Hours |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| GG-PT00-COM | GasGuard System c/w Pressure Transmitter +BACnet/Modbus Communication Module |
| TR-CO2TL | Transmitter - CO2 & Temp c/w LCD |
| ADPS | Air Diffrential Pressure Switch (20-300Pa) c/s Duct Kit |
| RSTOP-C | Remote Emergency Stop - Call Point |
| SVxx | XXmm Gas Solenoid Valve (230V) - Specify Size |
-
