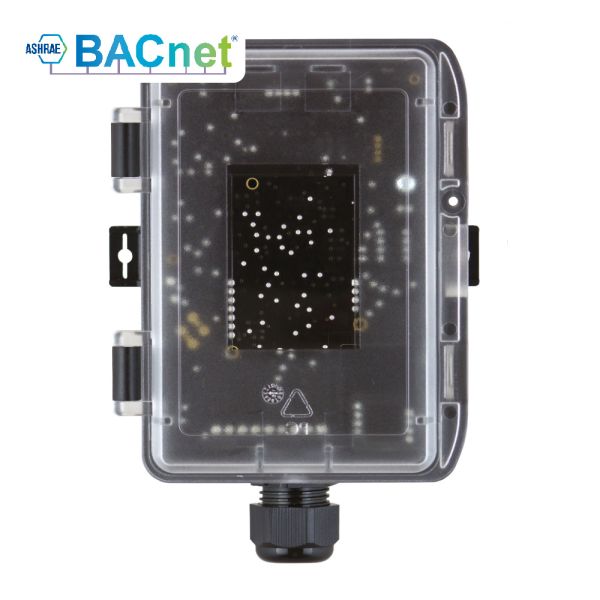

Duct Bacnet Sensor Range (DBAC)
The Flamefast BACnet sensor range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity, and the BACnet MS/TP interface allows for the sensors to be integrated with much larger systems over a simple two wire network.
Top Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block
- Automatic object configuration
- 3x 0-10V outputs (Network writeable)
- UK Manufactured
Overview
The Flamefast BACnet sensor range can be supplied with any combination of Carbon Dioxide (CO2), Temperature & Relative Humidity, and the BACnet MS/TP interface allows for the sensors to be integrated with much larger systems over a simple two wire network.
As default the three 0-10V outputs will provide a full scale linear output for the CO2, Temp & RH levels, however these analogue outputs can be rescaled or configured to be controlled over the network, negating the requirement for separate local controllers.
There is also the option to assign each of the analogue outputs to any of the sensor values, and the on board relay can be configured to activate based on CO2, Temperature or RH levels, or all can also be controlled over the network.
This cost effective and versatile sensor is ideal for any application, including natural and demand controlled ventilation systems.
Key Features
- 24V AC/DC Power Supply
- Pluggable terminal block
- Automatic object configuration
- 3x 0-10V outputs (Network writeable)
- Volt free contact output (Network writeable)
- Typical 10+ year life expectancy
- Self-calibrating CO2 sensor
- Flanged enclosure with hinged lid for ease of installation
- UK MANUFACTURED
Dimensions
| Height: | 152 mm |
|---|---|
| Width: | 110 mm |
| Depth: | 50 mm |
| Probe Length: | 200 mm |
Technical Specifications
| Power Supply: | 24V AC/DC ±10% | ||||
|---|---|---|---|---|---|
| Power Consumption: | 50mA Max | ||||
| BACnet: | MS/TP over RS485 Baud: 9k6, 19k2, 38k4 or 76k8 127 Address (1/10th Load) Full specification available on request | ||||
| Analogue Outputs: | 3x0-10V | ||||
| VFC Output: | SPST - 100mA @ 24V Max | ||||
| CO2 Range: | 0 - 10,000 ppm | ||||
| CO2 Output Scale: | 0 - 2,000 / 5,000 ppm | ||||
| CO2 Accuracy: | ±40 ppm +3% @ NTP | ||||
| CO2 Sensing Method: | Non Dispersive Infra-red (NDIR) | ||||
| CO2 Sensor Life: | 10+ Years | ||||
| Temp Range: | 0 - 50°C | ||||
| Temp Accuracy: | ±3°C @ 25°C | ||||
| RH Range: | 0 - 100% | ||||
| RH Accuracy: | ±2% @ 20 - 80% | ||||
| Operation Conditions: |
| ||||
| Sampling Method: | Diffusion | ||||
| Warm-up Time: | 30 seconds | ||||
| Housing Material: | PC/ABS | ||||
| IP Rating: | IP66 (external to duct) | ||||
| Colour: | Black/Clear | ||||
| Approval: | CE, UKCA |
Installer Selectable Options
- CO2 Analogue output (2,000 / 5,000 ppm)
- Relay set point (see below)
The unit has two user selectable programmes to control the volt free contact set point depending on the application. These are as follows:
| Programme | Ventilation | Gas Safety |
| Relay Position | Normally Open | Normally Closed |
| Relay Set Point | 1,000 ppm | 4,500 ppm |
NEED THE REQUIREMENTS?
CommercialKitchens
TeachingAreas
Plant Rooms
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| DBAC-CO2 | Duct BACnet Sensor - CO2 |
| DBAC-CO2TH | Duct BACnet Sensor - CO2, Temp & RH |
| DBAC-TH | Duct BACnet Sensor - Temp & RH |
-
CO2, Temp & RH Monitor (CO2M)The Flamefast Carbon Dioxide, Temperature and Relative Humidity Monitor... - Room Temperature Sensor (RT)The Flamefast Room Temperature Sensor is designed to complement our range of...
- Transmitter Range (TR)The Flamefast Transmitter range can be supplied with any combination of Carbon...
- Duct Transmitter Range (DTR)The Flamefast Transmitter range can be supplied with any combination of Carbon...

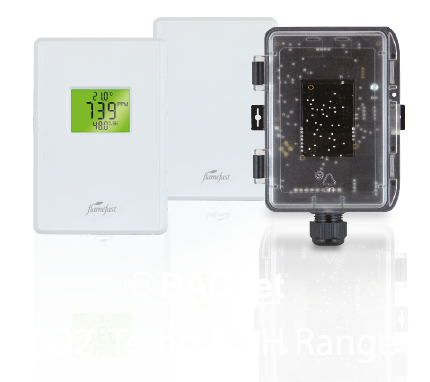

- BACnet Sensor Range (BAC)The Flamefast BACnet sensor range can be supplied with any combination of...
