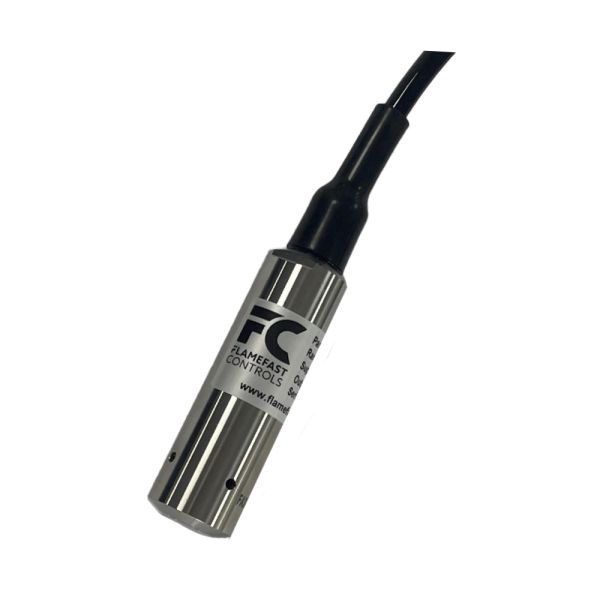

Level Transmitter (Submersible) - LTS
The Flamefast Hydrostatic Submersible Level Transmitter provides a cost-effective means of measuring tank water level based on the depth pressure.
Overview
The Flamefast Hydrostatic Submersible Level Transmitter provides a cost-effective means of measuring tank water level based on the depth pressure.
The stable and reliable piezoresistive pressure sensing element, and Stainless Steel housing offer long term reliability and excellent wetted material compatibility.
Dimensions
| Height: | 125 mm |
|---|---|
| Width: | 17 mm |
| Probe Length: | 5 m |
Technical Specifications
| Power Supply: | 11-28V DC |
|---|---|
| Analogue Outputs: | 4-20mA (2 Wire) |
| Sensor Type: | Piezo-resistive |
| Overload Pressure: | 2x Full Scale |
| Temp Range: | -10 ~ 70°C (media temp range) |
| Accuracy: | <±0.50%* FS |
| Repeatability: | <±0.02% FS / Year |
| Thermal Coefficient: | <±0.05% FS / °C |
| Wetted Parts: | Stainless Steel (316L) |
| Body Material: | Stainless Steel (304) |
| Media Temp: | -10 ~ 70°C |
| IP Rating: | IP68 |
| Approval: | CE |
Quality and Reliability as Standard
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| LTS-3.5A | Level Transmitter (Submersible) - 3.5mH2O (4-20mA) |
Data Sheets
General specifications in .pdf format
